High Precision Machining


2 x DMG MORI NTX 4300

5 Axis Turn Mill

Double spindle Dia 400 mm
Double tool turret
Range: Dia max 500 mm, Z max 1500 mm


DMG MORI NTX2000

5 Axis Turn Mill

Double spindle Dia 250 mm
Double tool turret
Range: Dia max 250 mm, Z max 1500 mm

Milling Boring Center

TF

ALESA MONTI IDRM180

5 axis

Weight max 40T
X max 7000mm
Y max 4500mm
Z max 4500mm


ALESA MONTI MMC65

5 axis
Weight max 18T
X max 4500mm
Y max 1500mm
Z max 1500mm

CNC Horizontal Machining Center

CU

DOOSAN HM1250

4 axis

Table Size: 1250x1000 mm
Weight max : 3.5 Tons


2 x DOOSAN HM8000

4 axis

Table Size: 1250x1200 (turn table)

Axis Travel : X1250 Y1000 Z1000

Allowable Load: 1600 Kgs


DOOSAN 6300

4 axis

Table Size: 1000x1000 (turn table) Axis Travel: X1000 Y800 Z850

Allowable Load: 1200Kgs

CNC Horizontal Turning

TCN H

DOOSAN PUMA 800XL

A REMPLIR


2 x DAEWOO PUMA 500

Chuck diameter: 630 mm

Swing over bed: 1750 mm

Diameter over bed: 670 mm

Spindle motor power: 45 KW

doosan puma 800L.jpg

DOOSAN PUMA 800L

4 axis

Table Size: Ø1250 * 1200 (turn table)

Axis Travel : X1250 Y1000 Z1000

Allowable Load: 1600 Kgs,

Table Size: 800x800 (Qty=4)

Equiped with Renishaw Sensor RMP60 (wireless)


DAEWOO PUMA 600

Chuck diameter: 800 mm

Swing over bed: 1500 mm

12 Tools on Turret

Programmable Tailstock

Diameter over bed: 720 mm

Spindle motor power: 70 KW

CNC Vertical Turning

TCN V

YOUJI YV2000 ATC 18IT

2 axis
4 chuck jaws: 2000 mm
Max. Turning diameter: 2500 mm, Max. Turning height: 1600 mm

12 Tools on Turret
Spindle motor power: 60/75 KW
Max. Work-piece height: 10 Tons, High Pressure Equipment for deep boring


YOUJI VTL1600 ATC+C

3 axis
4 chuck jaws: 1600 mm
Max. Turning diameter: 2000 mm
Max.  Turning Height 1600 mm
Automatic Tool Changer: 48 Tools
Spindle motor power: 60/75 KW
Milling Axis (Axis C): 15 KW
Max. Work-piece height: 8 Tons

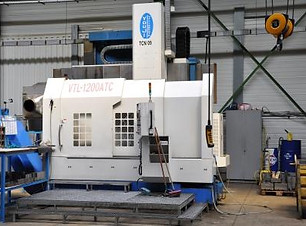

YOUJI VTL1200 ATC 18IT

2 axis
6 chuck jaws: 1250 mm
Max. Turning Diameter: 1600 mm

Max.  Turning Height: 1600 mm
12 Tools on Turret
Spindle motor power: 60/75 KW
Max. Work-piece height: 5 Tons

Cladding Technology

Clad

Cladding Automatic TIG Hotwire FRONIUS

Max Load 10T

Max Cladding Ø 1000-1500mm

Max Height of cladded parts 1000mm


ETR-S/FPA 9000 TIG HW Cladding FRONIUS

Max Load 10T

Max Cladding Ø 1830mm

Max Height of cladded parts 2500mm


2 Cladding Robot - MOTOMAN & TIG FRONIUS

Robotic cell with 1 robot 6 axis polyarticulated

2 positioners 1 axis (Max Load 1T / table diameter 900 mm)

Robot coupled to a power source TIG AC / DC 500A max.

with cold wire / hot wire and pulsated powered torch


Cladding Automatic Tripod FRONIUS TIG Hotwire

Max Load 6T

Max Cladding Length 2000mm

Max Cladding Diameter 2000mm

Heat Treatment Technology

TTH

Heat Treatment Furnace Thermidor 15T

Ventilated oven with mobile

Hearth for the stress relieving useful volume 3000x3500x 2250mm

Operating temperature 680 ° C

Maximum temperature 750 ° C

Uniformity of +/- 6 ° C meets the requirements of API 16A Annex A

Maximum load 15T


Heat Treatment Furnace Thermidor 3T

Ventilated oven with mobile

Hearth for the stress relieving useful volume 1500x1500x1300mm

Operating temperature 650 ° C

Maximum temperature 750 ° C

Uniformity of +/- 8 ° C meets the requirements of API 16A Annex A

Maximum load 3T


Heat Treatment Furnace Thermidor FHV 500   0.5T

Ventilated oven with mobile

Hearth for the stress relieving useful volume 1000x700x500mm

Operating temperature 680 ° C

Maximum temperature 750 ° C

Uniformity of +/- 6 ° C meets the requirements of API 16A Annex A

Maximum load 0.5T

Control

Control

3D Measuring Machine DEA ALPHA

X = 2000mm

Y = 3300 mm

Z = 1500 mm


2 GAGEMAKER  MT-3000

Length: 600 mm and 1500 mm


NDE CONTROLS

Ultrasonic Inspection

COFREND LEVEL UT2 & UT3


Magnetic Particles Inspection

COFREND LEVEL MT2 & MT3


Liquid Penetrant Inspection

COFREND LEVEL PT2 & PT3


Visual Inspection

COFREND LEVEL VT2


3D Measuring arm ROMER 7525HA

Measuring Range 2.5 m


PMI, Positive Material Identification

OLYMPUS VANTA


Height gauges TRIMOS VECTRA 1000

Measuring Range: 1016 mm


3D Printing

3D RAISE PRO2: Max Volume 300x300x300mm
